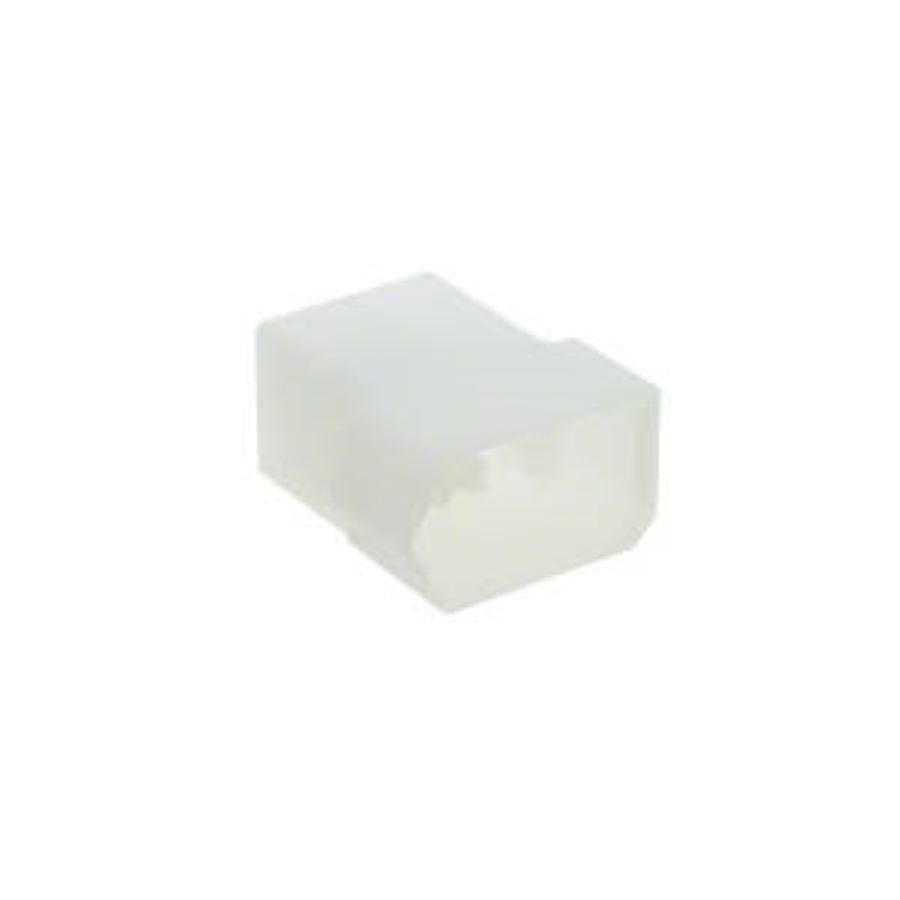

180901
Manufacturer:
TE Connectivity
Mfr.Part #:
180901
Datasheet:
Description:
Terminals Free Hanging Receptacle
| Parameter | Value |
|---|---|
| Length | 31.5 mm |
| Width | 28.1 mm |
| Termination | Quick Connect |
| Material | Nylon, Polyamide |
| Packaging | Bulk |
| Depth | 31.5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 7.2 mm |
| Type | Tab Housing |
| Current Rating | 28 A |
| Flammability Rating | UL94V-2 |
| Number of Circuits | 4 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Natural |
| Gender | Receptacle |
| Number of Contacts | 4 |
| ELV | Compliant |
| Body Material | Nylon |
| Tab Width | 6.35 mm |
| Number of Poles | 4 |
| Connector Type | Plug, Power, Rectangular, Tab |
| Insulation | Non-Insulated |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Housing Material | Polyamide |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | Natural |
| Termination Style | Crimp |
| Contact Gender | Female |
| Mating Post Length | |
| Tab Length | |
| Tab Thickness | |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Stud Size | 6.35 mm |
Stock: 9661
Distributors
pcbx
pcbxUnit Price$0.35052
Ext.Price$0.35052
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.35052 | $0.35052 |
| 10 | $0.31547 | $3.15470 |
| 25 | $0.27357 | $6.83925 |
| 50 | $0.27229 | $13.61450 |
| 100 | $0.27101 | $27.10100 |
| 300 | $0.25819 | $77.45700 |
| 500 | $0.24597 | $122.98500 |
| 1000 | $0.23433 | $234.33000 |
| 3000 | $0.22324 | $669.72000 |
| 5000 | $0.21268 | $1063.40000 |
| 10000 | $0.20262 | $2026.20000 |
